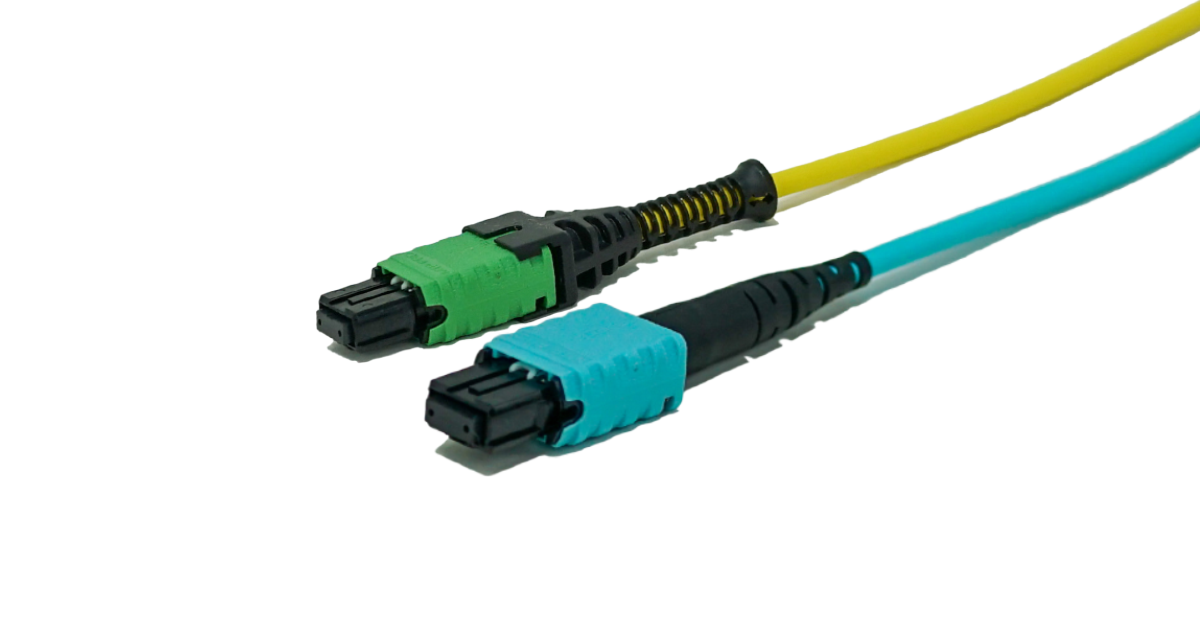

MTP®/MPO PRO Patch Cables

MTP® Patch and Trunk cables are the backbone for the Network and interconnect to MTP® Cassettes or directly to the electronics.

The PRO connector brings a simplified use to the MPO format by offering optimal field flexibility and enhanced performance, while still incorporating the proven features of a MTP® connector. The key differences are that the PRO connectors have the ability to change the polarity (MM only) and the gender (pinned/unpinned) for SM and MM applications, while in the field. All new orders of 12F MTP® cables will have the PRO connectors.

Fiber Optics Catalog.pdf

Broadband Product Display.pdf

• Fiber: 4-144 fibers

• Connectors: 12FF MTP®-Male/Female, 24FF MTP®-Male/Female, LC, SC, ST, and Pigtail

• Polish: APC or UPC

• Cable: Indoor, Outdoor, Plenum, LSZH

• Fiber: Multimode and Singlemode

• Breakouts: 1.6mm, 2mm, 3mm, 5mm, Indoor/Outdoor, Staggered

• Field pin and polarity change (MTP Pro only)

• Pulling eyes upon request

• Assemblies over 100ft are shipped on a reel

• RoHS and REACH materials compliant

  Insertion Loss:

• Multimode: .25dB typical, .35dB max

• Singlemode: .50dB typical, .60dB max

• Min RL: -65dB(APC), -57dB(UPC)
