IP68 LC/SC/MPO Connectors

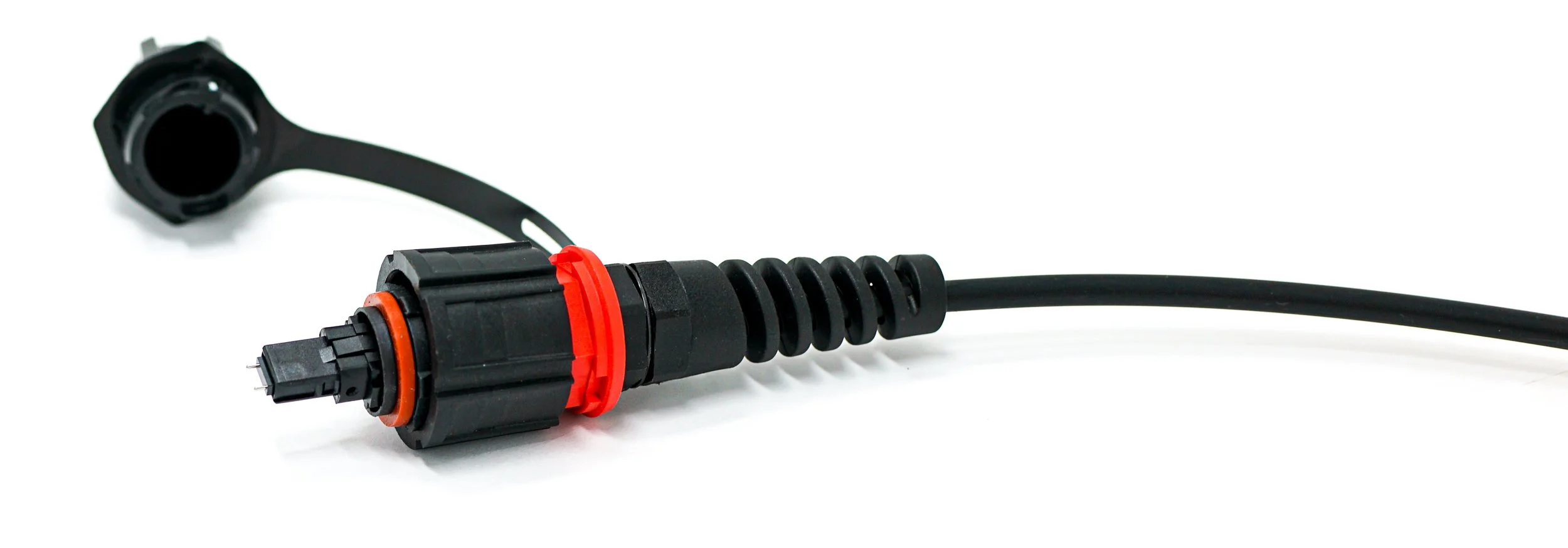

IP68 MPO
Features:
Connector: Simplex SC, Duplex LC, and 12/24F MPO
Cable: Armored, Indoor/Outdoor, and Tactical cable
Multimode and singlemode
Waterproof, dust-proof, and corrosion resistant
One-hand bayonet mating designed in accordance with IEC60603-7
Color-coded safety lock to prevent unintended disconnect
Waterproof dust cap available
Easy extension with in-line adapter
RoHS and REACH materials compliant
Insertion Loss:
Multimode: .15dB typical, .20dB max
Singlemode: .20dB typical, .30dB max
Min RL: -65dB(APC), -57dB(UPC)
IP68 MPO
