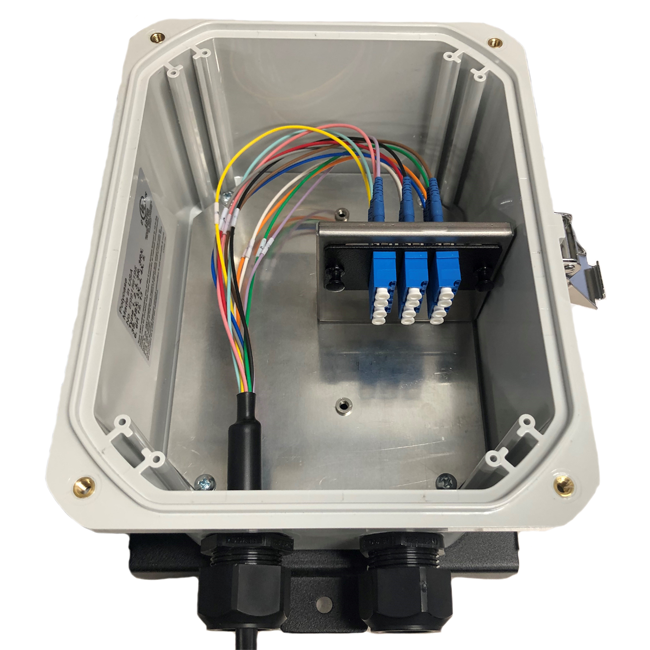

Pre-Wired Pole Mount Enclosures



Pre-wired pole mount fiber enclosure kits for Ericsson and Samsung 5G RRU

  • Cable: Flat drop or 5.5mm armored

  • Connectors: OptiTip®, Non Pinned, and LC

  • Fiber: Singlemode

  • Fiber Count: 2-12 fibers

  • Copper: 3x CAT6 (Samsung)

Insertion Loss

  • Singlemode: 20dB max

  • Min RL: -65dB(APC), -57dB(UPC)

    *Includes pole mount bracket and compatible with Corning® and CommScope HFMOC*

Features:

  • Cable Length: Built to order

  • 9.04in x 7.04in x 5.72in

  • UL Listed (File E352997)

  • NEMA 1, 2, 3, 3R, 3X, 3RX, 3S, 3SX, 4, 4X, 5, 6, 6P*, 12 & 13 rated

  • IP66, IP67, & IP68* rated

  • Impact-resistant polycarbonate

  • Designed for outdoor use: weatherproof, waterproof and corrosion-resistant

  • Hinged cover with stainless steel hardware

  • Optional tamper-resistant cover screws

  • Stainless steel latch with area for padlock

  • Continuous gasket paired with a thick and tall rib for watertight seal
