Multi Dwelling Unit (MDU) Enclosures



Fiber Distribution Enclosure

SFST-3A Series Enclosure

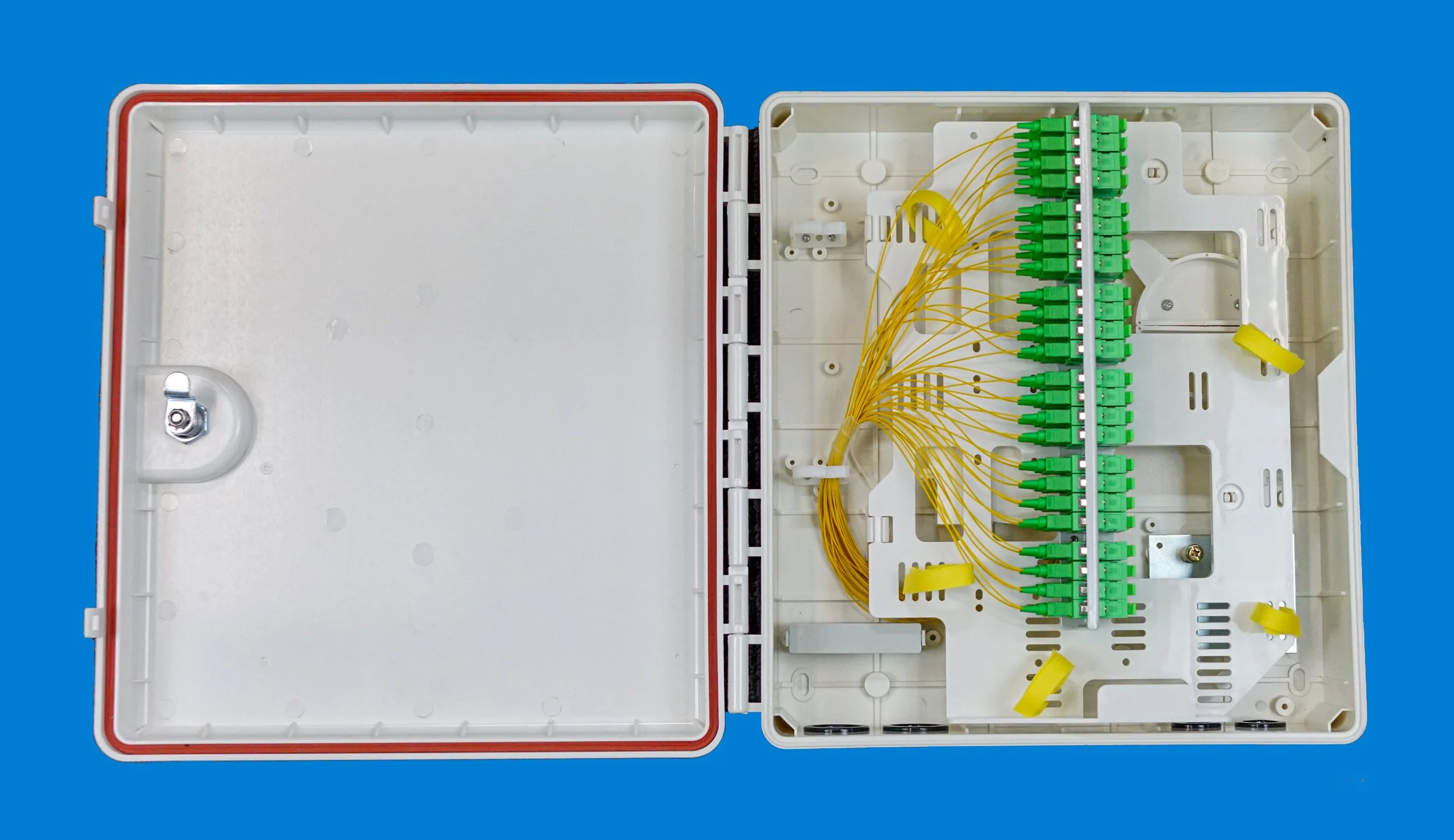

NetSource's Fiber Distribution Enclosures are engineered to withstand any environment while providing an easy-to-use solution for fiber-to-the-home (FTTH) installations. Our enclosure has the ability to splice up to 24 fibers and compatible with SC or LC adapters or pigtails.

Available pre-wired and in a variety of configurations.

Fiber Distribution Enclosure.pdf

Features:

  • 24 SC and 48 LC connectors

  • Splitters: 1x12 or 1x16

  • Input: 2x14mm

  • Output: 24x5mm

  • Splice: 1x24 fibers

  • Indoor/Outdoor, IP66 rated

  • Wall or pole mount

  • 12.59” x 9.44” x 3.93” (LxWxH)



The SFST-3A Series Outdoor Fiber Optic Distribution Enclosure is rated IP65 and designed to withstand harsh weather conditions. It is a robust enclosure that is well-suited for MDU (Multi Dwelling Units) supporting FTTH (Fiber To The Home) installations. The SFST 3A Series can be purchased empty or preloaded with various configurations that include splice trays and pigtails.

Outdoor Fiber Optic Distribution Enclosure SFST-3A Series.pdf

Features:

  • Up to 48 SC or 96 LC connectors

  • Splitters: 1x36 or 3x16

  • Cable OD: 2x19, 2x25mm

  • 2x24 Fiber Splice Trays with Fiber Splice Sleeves

  • Indoor/Outdoor, IP65

  • Wall or pole mount

  • 14.17”(H) x 17.71”(W) x 6.10”(D)

  • Temperature Range: -40°C to +80°C

  • Includes lock
